The network configuration of Essl X990 Biometric device in Crawlink Biometric Server

on

How to connect Wi-Fi in Essl X990 device?

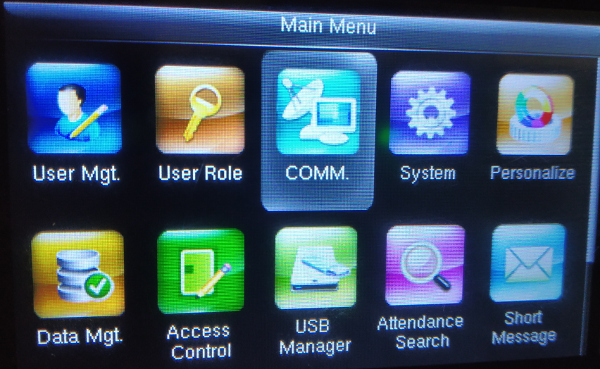

  1. Press Menu button to enter into Main Menu.
  2. Select Comm. menu
  3. Select Wireless Network option
  4. Select desired wifi network from the list and provide the password and wait till it gets connected (Wifi option should be enabled)

How to add Network configuration in the Essl X990 device?

  1. Press Menu button to enter into Main Menu.
  2. Select Comm. menu
  3. Select Ethernet Sub Menu
  4. IP Address: 192.168.1.201
  5. Subnet mask: 255.255.255.0
  6. Gateway: 192.168.1.1
  7. DNS server: 0.0.0.0
  8. OK  (Press M/OK Button)
  9. Done - (Now press ESC to come out)

ADMS Setup With Crawlink Server?

  1. Press Menu button to enter into Main Menu.
  2. Select Comm. menu
  3. Select Cloud Server Setting Sub Menu
  4. ADMS Server: IP Mode, 13.233.181.137:8080
  5. Enabled Proxy Server: OFF
  6. Press OK (Press M/OK)
  7. Done - (Now press ESC to come out)





How to Download Employees/Students From Crawlink ERP?

1. Login to Crawlink Erp
2. Select Biometric Device in Left Navigation bar
3. Select Download User Data
4. Click on Filter option at the top - click on + button at the right-hand side
5. Click on the drop-down option - select User type (Left side)
6. Click on the drop-down and select Staff (Right side) for employees or
Click on the drop-down and select Student (Right side)
7. Click on Apply
8. Click on the Download button in the right top corner.
9. Select OK
10. It will Download user.dat file, put the user.dat file into Pen drive


How to Upload User data from Crawlink ERP to Essl X990 Device?

1. Connect pen drive in the biometric device (side wall there is a USB port for it)

2. Now Press Menu in the device

3. Select USB Manager in the device

4. Select Upload option in the device

5. Select User data option
6. Press OK (Press M/OK)
7. Done - (Now press ESC to come out)
8. Remove Pen drive from the device










How to create an Admin User in the Essl X990 device?

  1. Press Menu button to enter into Main Menu.
  2. Select User Mng.
  3. Select New User, then Enter the user details
  4. ID = 1
  5. Name = Admin Staff Name
  6. Select Fingerprint
  7. Highlight the finger in which the user wants to give fingerprint with arrow keys in the device - then the user has to give the finger impression three times (it will be displayed in the device). In case of the incorrect fingerprint, the user has to provide the impression once again
  8. Repeat step 7 for both the hands
  9. PWD = give 4 digit password
  10. Card = Touch the Admin RFID card, when the card touched the device the card Number will Enter into the device. (optional step and require if Proximity card access is required for the user)
  11. Select User role  (use arrow keys) - Super Admin
  12. Then press OK button on the device.
  13. Press ESC to come back.


How to provide Fingerprint and Card for users in the Essl X990 device?


1. Press Menu button to enter into Main Menu.
2. Select User Mng.
3. Select All users, then select the user from the list (use arrow keys to select)
4. Select Fingerprint
5. Highlight the finger in which the user wants to give fingerprint with arrow keys in the device - then the user has to give the finger impression three times (it will be displayed in the device). In case of the incorrect fingerprint, the user has to provide the impression once again
6. Repeat step 5 for both the hands
7. Card = Touch the Admin RFID card, when the card touched the device the card Number will Enter into the device. (optional step and require if Proximity card access is required for the user)
8. Then press OK button on the device.
9. Press ESC to come back.

Note: Please download user manual of Essl X990 device from the below link
https://drive.google.com/file/d/1-j7KZ46RvC5r5-Z1BUFBpy2rVvmDMqka/view
